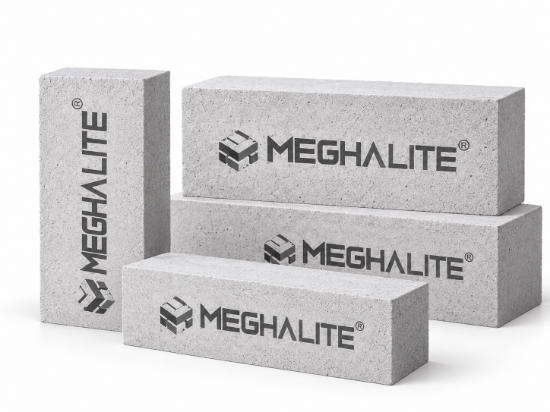

A modern solution for better construction, Meghalite AAC Blocks comprise 60 – 65% Fly Ash (by weight), with other elements being OPC Cement, Quicklime, Aluminum powder and Gypsum. With such strong composition, no wonder Meghalite AAC Blocks are highly robust and durable despite their light weight. Also, this AAC Block’s solidity owes its origins to the calcium silicate and from the process of curing in a pressurized steam chamber called an Autoclave.
STANDARD SIZES:
600x200x200mm (8″ width)
600x200x150mm (6″ Width)
600x200x100m (4″ Width)
600x200x230mm (9″)
Custom sizes availbale against order
TECHNICAL SPECIFICATIONS
Perticulars | Units | Values | Requirement as per IS-2185 part-3 |
Compressive Strength | N/mm2 | >4.0 | > 4.0 (Density range 551-650 Grade-1) |
Oven Dry Density | kg/m3 | 560-640 | 551-650 |
Fire Rating | Hrs. | 8.00(For 200ml wall) | 6 hrs in Desirable |
Thermal Conductivity(k value) | W/mL | 0.16-0.21 | 0.24 Max |
Sound Reductions | | 45db for 200mm blocks without plastering | NA |
Modulous of Elasticity | Mpa | 2040 | NA |
Thermal Resistance(R Value) | M2k/W | 0.95(200mm width)@021 W/mk | Max Value is Desirable |
Thermal Conductance(U Value) | W/M2k | 1.05(200mm width)@021 W/mk | Min Value is Desirable |
Drying Shrinkage | % | 0.04 | 0.05 for Gr-1Max |
Sound Transmission Class | db | 44 | NA |
You can request for a sample by calling our number
